Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller + 433 / 915 Telemetry+M8N GPS+Minim OSD+PM+Safety Switch+Buzzer+PPM+I2C+ 4G SD

Color:
List price: US $154.65
Price: US $85.06
You save:US $69.59 (45%)

Item Specifics

Brand Name:
Readytosky
Material:
Composite Material
Tool Supplies:
Assembled class
Upgrade Parts/Accessories:
Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller
RC Parts & Accs:
Motors
Use:
Vehicles & Remote Control Toys
Technical parameters:
Value 6
Model Number:
PIX 2.4.8
Remote Control Peripherals/Devices:
Motor
For Vehicle Type:
Airplanes
Four-wheel Drive Attributes:
Assemblage
Wheelbase:
Bottom Plate

Product Description

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Microprocessor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
Sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5607 precision barometer
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
It is suitable for flight control of Pixhawk, etc. and is used to display the status information of aircraft. This module is connected to Pixhawk's I2C interface
Note: To upgrade the firmware of the display to 3.5 or more, set NTF_DISPLAY_TYPE to 1 in the Massion Planner and restart Pixhawk.
NOTE: Before connect with the computer, you need to insert the SD card first , then flash the program, otherwise the LED indicator will not light up.

The RGB without shell send at random.

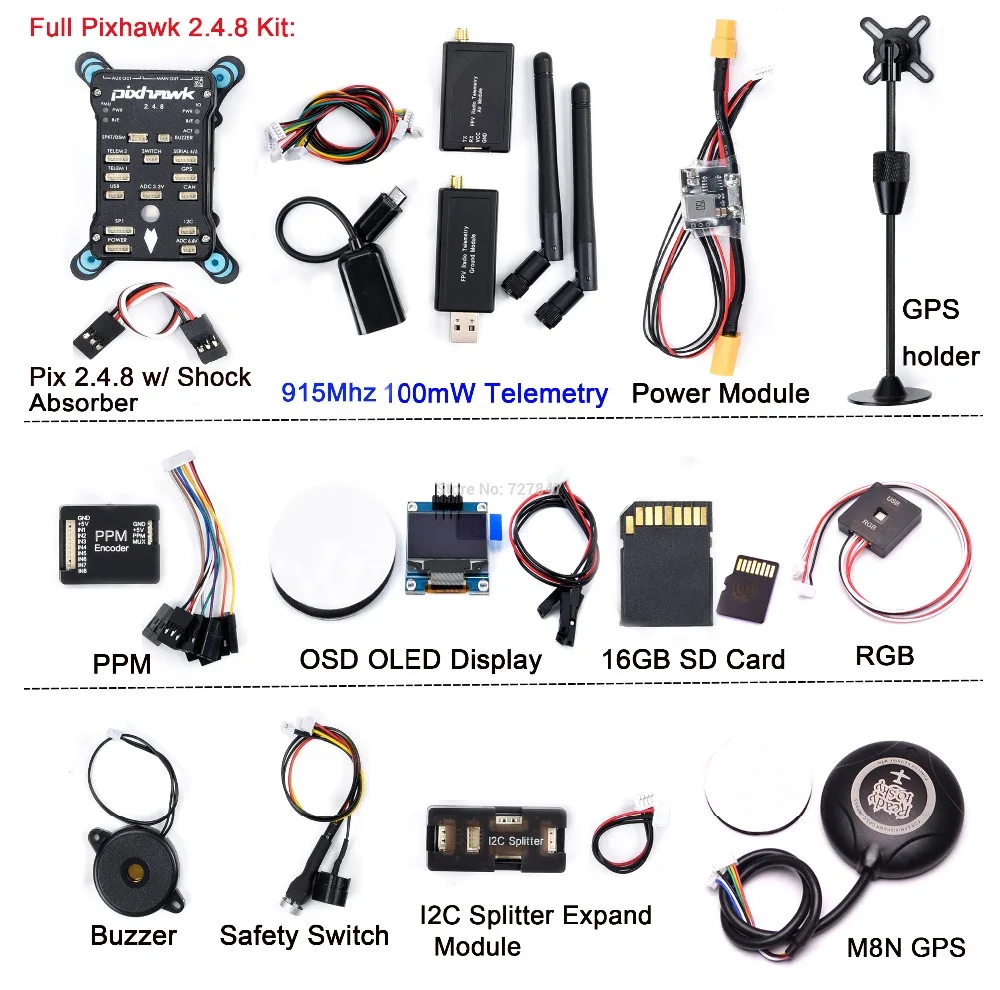

Packing list: (full set as your choose)
Pixhawk 2.4.8 32bit ARM Flight Controller x 1
anti-vibration Shock Absorber Board x1
Safety button and buzzer x 1
RGB without cover x 1
​​​
4G card (IO firmware has written) x 1
Neo-M8N Gps Module x 1
Black Gps Holder x 1
Power Module x 1
Minim OSD or OSD OLED Display x 1 ( send as your choice, same with picture which you choosed )
I2C Splitter Expand Module x 1
PPM Module w/ shell x 1
433/915 MHZ 100mw / 500mw telemetry x 1 ( send as your choice)
6pin turn 6pin cable x 1
4pin turn 4pin cable x 1
3pin DuPont line x 1
Base kit Pixhawk 2.4.8 package included:
Pixhawk 2.4.8 32bit ARM Flight Controllerx 1
Safety buttonx 1
Buzzer x 1
4G card x1
RGB without cover x1
PPM wth shell X1
I2C with shell X1
Shock Absorber x1
Power module x 1
Cables

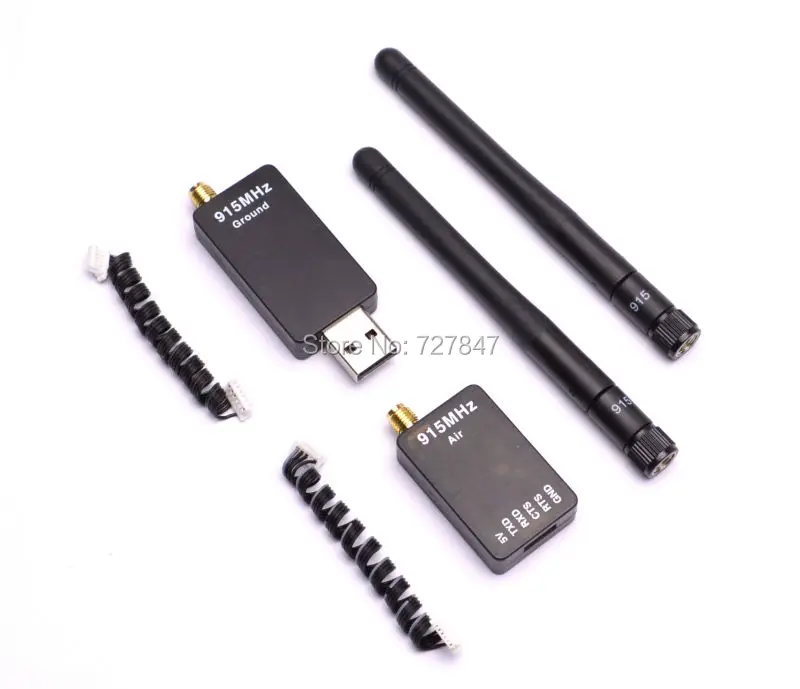

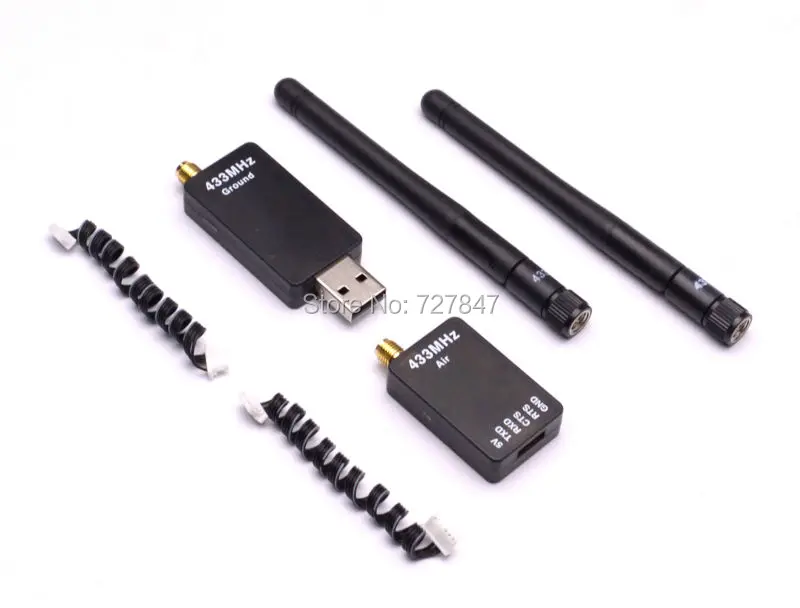

433 / 915MHZ 100mw/ 250mw Telemetry pictures: (without OTG Cable)

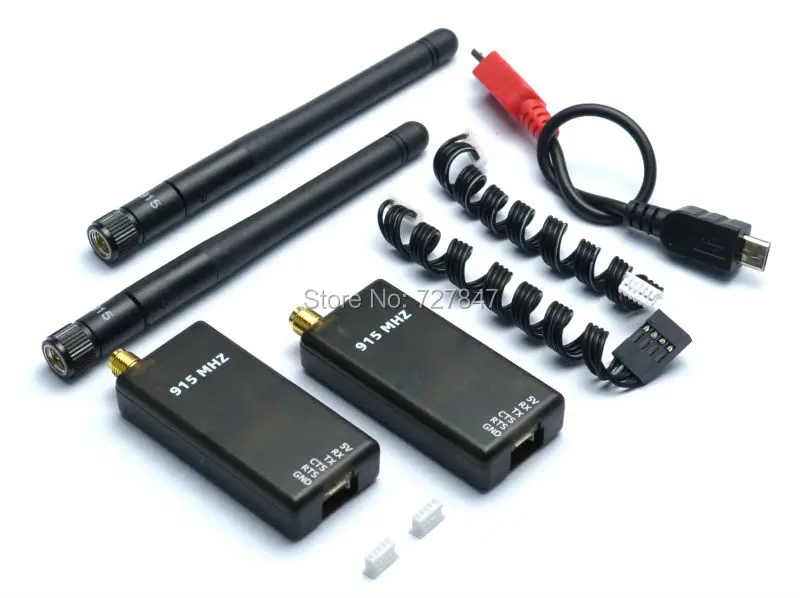

433 / 915MHZ V2 Telemetry 500MW : (with OTG cable )
