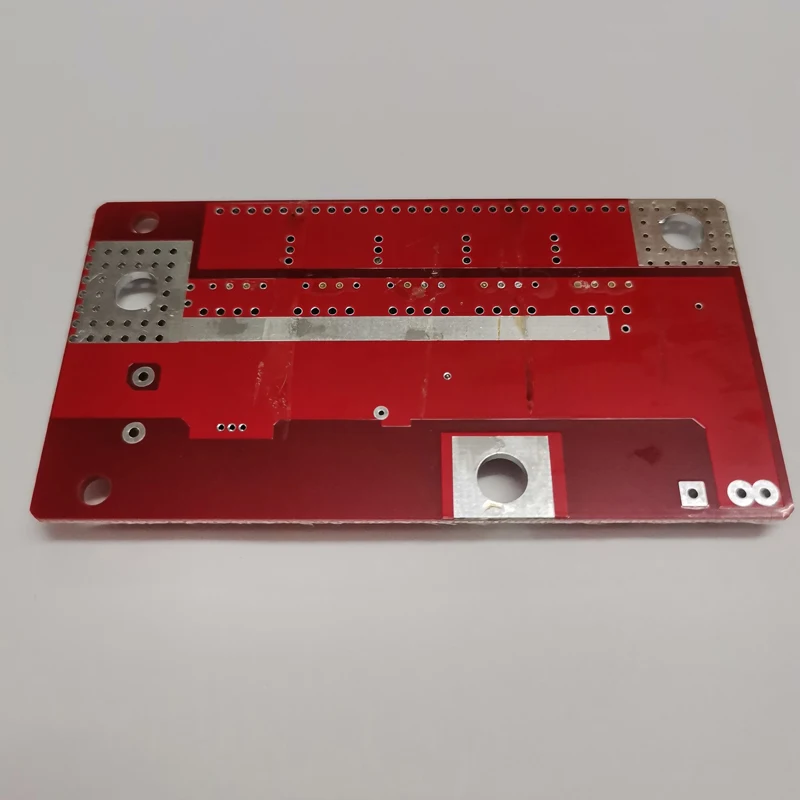

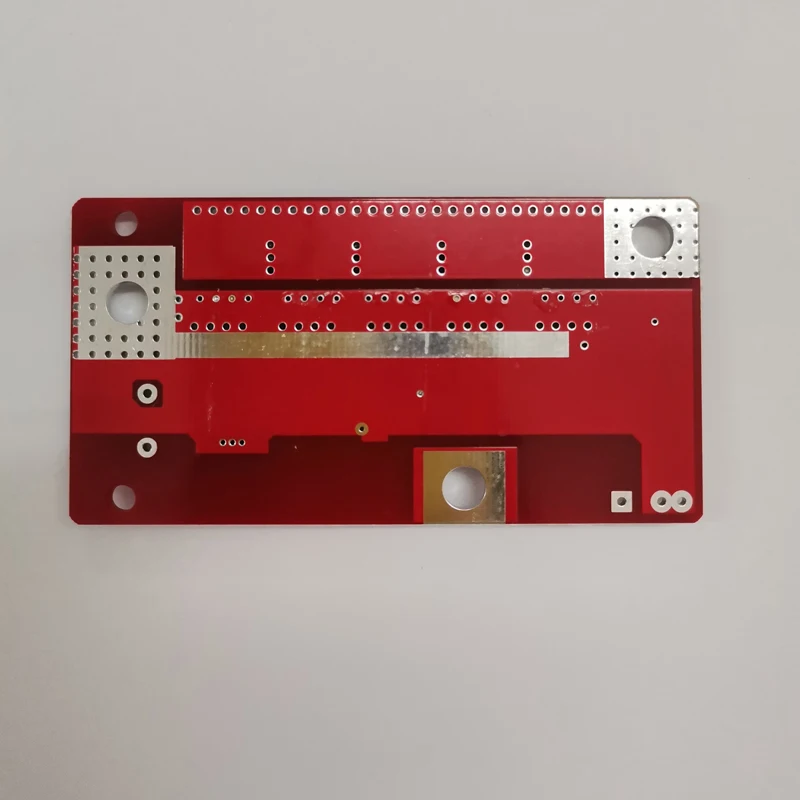

18650/26650/32650 Lithium Battery Energy Storage Spot Welding Board DIY Welder PCB Circuit Module for Portable Solding Machine

List price: US $16.59
Price: US $14.77
You save:US $1.82 (11%)

Item Specifics

Brand Name:
Composite Material
Tool Supplies:
Assembled class
Upgrade Parts/Accessories:
Welder PCB Circuit Module
RC Parts & Accs:
Solding Machine
Vehicles & Remote Control Toys
Technical parameters:
Value 2
Model Number:
for Portable Solding Machine
Remote Control Peripherals/Devices:
Spot Welding Board
Four-wheel Drive Attributes:

Product Description

1pcs 18650/26650/32650 Lithium Battery Energy Storage Spot Welding Board DIY Welder PCB Circuit Module for Portable Solding Machine

Red type is available now.Black type is not available now.We will all send red board when you place the order after 2020-4-16.
– The package include should be spare parts, which need welding and assembly by yourself
– And it also need you to have some welding technology and circuit knowledge.
– PLS mounting the electric capacity to avoid the board burn and other issue
– Can be welding 18650/26650/32650 lipo battery, it is portable, stable and reliable
– System voltage: 12V-14.6V
– Working current: 90-150A
Suggested battery:
– 20-45ah Lead-acid battery with good performance and small internal resistance
– 3.5-5.5ah 45C 3S aeromodel lithium battery pack
– 30-35ah capacity 18650 battery pack
-This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1MM-0.15mm
Package include:
1pcs x Main Circuit Board
1pcs x Buzzer
2pcs x Input Wire
2pcs x Output Line with Welder Pen
If the battery is pretty good and the internal resistance is very low, and then there may be large current overload.
If you are not sure about your battery, it's better to extend the wire by around 1 meter with 2.5² or 4² wire, then it will reduce the risk of power tube burnt.
Click below picture which is New 12V Spot Welding Machine
Learn what other say about this product

Customer reviews

Verified buyer

The parcel came quickly, but the package with the board was open, still did not check

Verified buyer


Verified buyer

With wires from the kit, I did not check. The pose installed thick wires. Tape from the kit lives. I'm waiting for another tape and batteries. On the tests burned the fee. Ordered a new one. For this I ordered new MOSFETs.

Verified buyer

Everything works fine, fed on fashion, 12 B1A from the unit food, and picked up 3s battery through the welding only minus,, everything is chic, I 've been using it for two weeks, almost forgot to write a review

Verified buyer

Everything came as described ^_^ couldn't be more happier ^_^ The team responded to me quickly ^_^ they are good

Verified buyer

By mistake i got the 5V version and I blow it up at 12V and store was fair to send new item which came today. I'm very satisfied. Definitely recommend this seller.

Verified buyer

Пришло быстро. Товаром доволен !!!Качество класс. Продавца советую!!!

Verified buyer

Consegna molto rapida e oggetto perfettamente funzionante.

Verified buyer

работает. 3 или 4 режима точно пока не разобрался. да питание не менее 40 ампер 25 амперный блок не тащит.

Verified buyer

Everything went smoothly, I'm satisfied. I recommend this store. Despite the warnings of other commenters of similar products, I could weld with a 45 Ah simple car battery, so the stuff is cool.

Verified buyer

Działa zgodnie z opisem, przydatne urządzenie

Verified buyer

Received, but not tested

Verified buyer

need the manual to assembly...

Verified buyer

Cool. Tried, everything is ok!!!

Verified buyer

works fine as long as you have heavy connector for the battery perfect for the price
